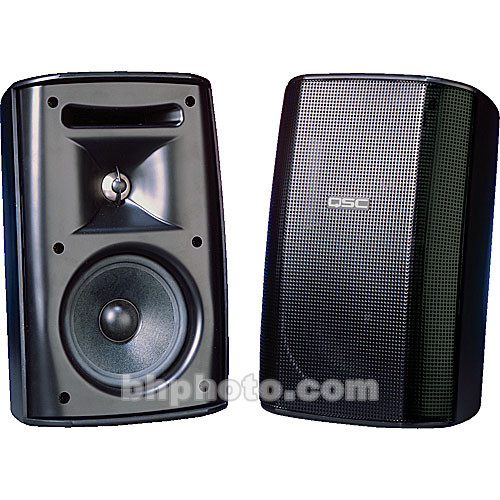

The QSC AcousticDesign AD-S52T is an inexpensive, full-range 60W surface mount installation loudspeaker with a 70V/100V matching transformer, sold as a pair, incorporating a 2-way design with a 5.25″ weatherproof LF transducer and a 1″ neodymium tweeter. The speaker is designed and styled for discreet placement in hotels, restaurants, convention facilities, and multimedia environments.
The low-frequency driver of the AD-S52T is magnetically shielded, enabling placement in close proximity to video monitors. The weather-resistant black enclosures may be painted to match specific decor applications, and a dynamic power protection circuit is built-in to ensure reliable performance in the event of overload conditions.
- Lightweight surface mount speaker with 60W power handling capacity and shielded 5.25″ woofer for placement in close proximity to video monitors
- Built-in 70V/100V matching transformer for distributed audio systems with transformer tap switch, with 8 Ohm bypass setting on rear panel
- 70V/100V transformer tap switch for 3.75(70V only)/7.5/15/30W power levels
- Full-range speaker for background music applications, 1″ neodymium dome tweeter with neodymium magnet for improved high frequency reproduction
- Ported enclosure for tighter lo-end definition
- 90° horizontal x 90° vertical nominal coverage angle
- Convenient ball mount assembly provided for quick, secure installation
- Removable ball mount adapter back plate reduces overall depth of the assembly and wall mount footprint for simplified placement in tight spaces
- Weather-resistant input connection cover protects 5-way binding post connectors
- 5-way binding post connectors accept wire, spade lugs or banana plugs
- Weather-resistant, molded polystyrene enclosure material, removable powder-coated steel grill speaker cover
- 2 x AD-S52 Speakers
- 2 x Ball Mount Assembly
- 6mm Hex Key
- 2 x Input Covers
- 2 x Input Cover Gaskets
- 2 x Input Strain Relief Bushing
- 8 x Phillips Cover Screws
- Owner’s Manual
